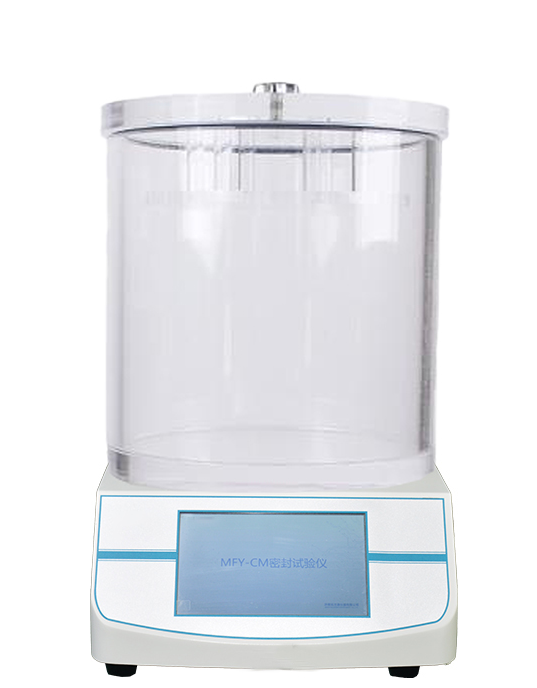

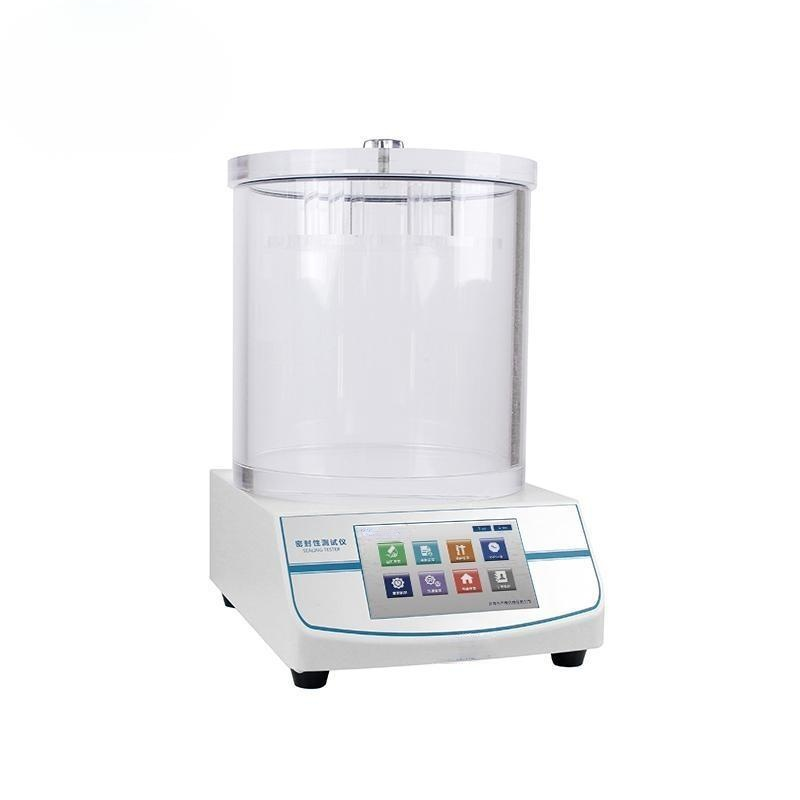

Condom Package Integrity Tester (Model: PYT-Package Series) is a professional quality control testing instrument engineered and manufactured by Peyotal. Leveraging years of laboratory engineering expertise, this micro-computer controlled vacuum system is designed to evaluate, compare, and verify the sealing process and leakage performance of flexible packaging, medical pouches, and barrier materials.
Standards: Fully compliant with international testing frameworks including GB/T15171-1994, GB 7544-2009, ISO 4074:2002, and ASTM D3078.
| Model | PYT-144 |
| Brand | Peyotal |
| Power Supply | AC 220V / 50Hz (customizable) |
| Standard Compliance | GB/T15171-1994, GB 7544-2009, ISO 4074:2002, and ASTM D3078 |
| Dimension | 400(mm)300(mm)500(mm) |
| )Warranty | 12 months |
Q1: What are the primary testing principles Peyotal utilizes to determine a package leak?
A: The tester uses two professional observation methods via differential pressure. First, by pulling a vacuum in the water-submerged chamber, it creates an internal-external pressure difference in the package, allowing operators to visually locate escaping gas bubbles. Second, by vacuuming the dry chamber, it observes whether the package correctly expands and fully recovers its original shape after vacuum release, determining micro-leakage behavior.
Q2: Why does Peyotal choose imported SMC pneumatic components for this integrity tester?

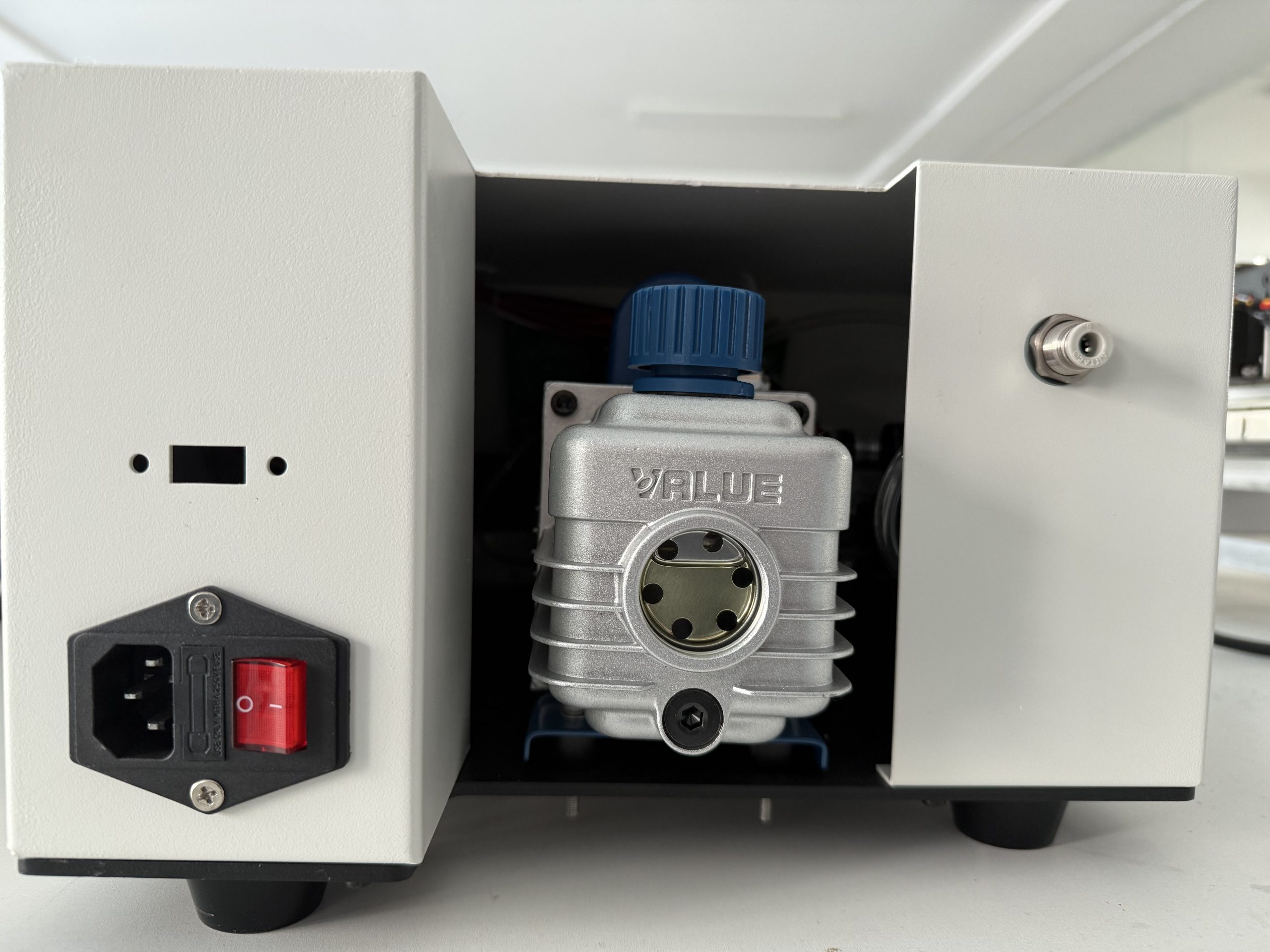

A: In high-frequency factory QC lines across Southeast Asia and Africa, equipment durability is vital. Peyotal integrates genuine imported SMC pneumatic components from Japan to guarantee stable, wear-resistant, and ultra-reliable vacuum pressure maintenance. This specialized pneumatic setup combined with our automatic constant pressure air supply ensures that the machine strictly holds your preset vacuum conditions without fluctuations during long test cycles.
Q3: Can this integrity tester be adjusted to test non-standard medical packages or rigid containers?
A: Yes, absolutely. Beyond the standard flexible foil pouch testing, this equipment offers wide application versatility. It is fully capable of testing rigid medicine bottles, plastic cans, glass tubes, boxes, and even rubber plugs or electronic components. Peyotal offers three standard acrylic testing tank sizes, and our manufacturing facility can custom-engineer specialized chamber dimensions to accommodate your unique laboratory samples.
Q4: What automated digital functions does the software provide to simplify laboratory audits?
A: The system is controlled by an intelligent micro-computer core. Operators can digitally preset the target vacuum degree and retention time via the chemical-resistant PVC panel. Once the test finishes, the professional software automatically executes blowback unloading and cleanly terminates the cycle, allowing laboratory technicians in research institutes or science departments to quickly review precise, human-error-free results on the LCD screen.
