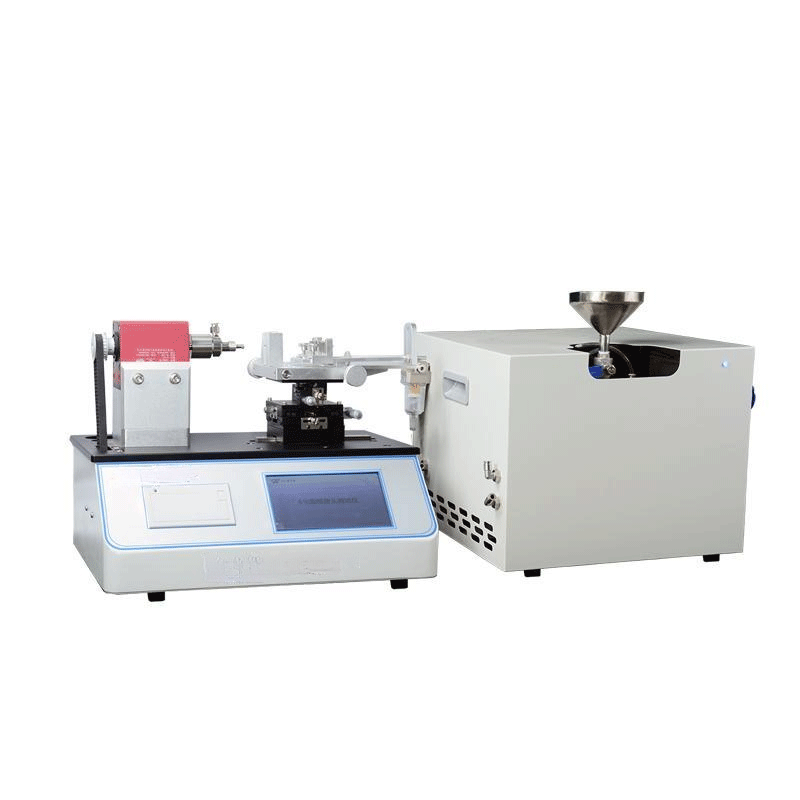

PYT-369 Medical Conical Connector Comprehensive Tester

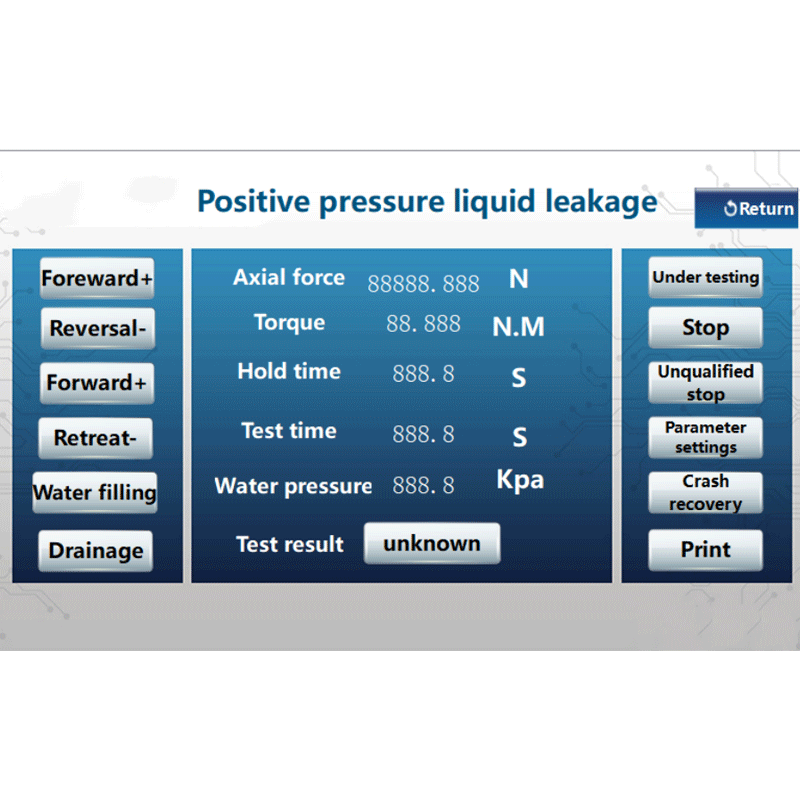

The Peyotal Medical Conical Connector Comprehensive Tester integrates a 7-inch color LCD touchscreen driven by an industrial-grade PLC control architecture. Built to satisfy stringent GMP compliance guidelines, the system incorporates multi-level user permissions, non-modifiable test data logging, and complete audit trail capabilities. Operators can select standard syringe nominal capacities from 1 mL to 60 mL directly through the intuitive menu. During testing routines, the high-precision servo loading mechanism applies calibrated axial forces (0 to 200 N, error <= +/-0.5%) and rotational torques (0.01 N·m to 5.0 N·m, error <= +/-0.5%), while real-time sensors monitor internal water pressures (200 kPa to 400 kPa, error <= +/-0.5%), separation forces (20 N to 60 N, error <= +/-1%), dwell hold times (1 to 3200 s), and positive/negative pressure leak rates. The system automatically judges sample compliance against preset international threshold curves and generates immediate batch verification receipts via the on-board micro printer. Housed in a heavy-duty 40 kg benchtop chassis and supplied with standard connector adapters (sizes 0 to 13) and pneumatic/hydraulic pressure pumps, this instrument provides reliable testing for medical device manufacturers, infusion set fabricators, and accredited testing laboratories across Southeast Asia, Central Asia, Africa, and Latin America.
product details
The Medical Conical Connector Comprehensive Tester is a high-precision multi-parameter laboratory testing apparatus engineered and manufactured by Peyotal. Developed to determine the physical and mechanical sealing integrity of medical conical fittings and 6% (Luer) connectors, this system accurately quantifies liquid leakage, positive/sub-atmospheric pressure air leakage, separation force, unscrewing torque, resistance to overriding/overload, and stress cracking behavior.

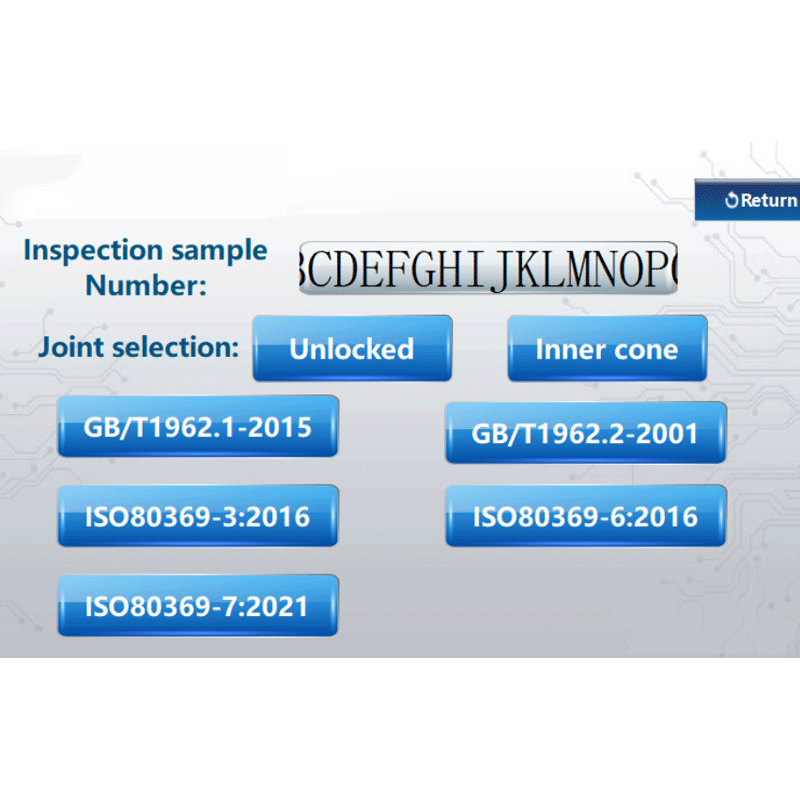

Standards: Fully compliant with leading international and national calibration frameworks including GB1962.1-2015, GB1962.2-2001, ISO 80369-3:2016, ISO 80369-6:2016, and ISO 80369-7:2021.
| Model | PYT-369 |
| Brand | Peyotal |
| Testing Capability | 7-in-1 Comprehensive validation (Liquid/Air leakage, Separation force, Stress cracking, Anti-loosening, Overload resistance). |
| Standard Compliance | ISO 80369-3 / ISO 80369-6 / ISO 80369-7 / GB1962.1 |
| Equipment Weight | 40 kg heavy-stabilized industrial framework |
| Warranty | 12 months |
Q1: What distinct ISO 80369 product test items can this comprehensive machine execute?

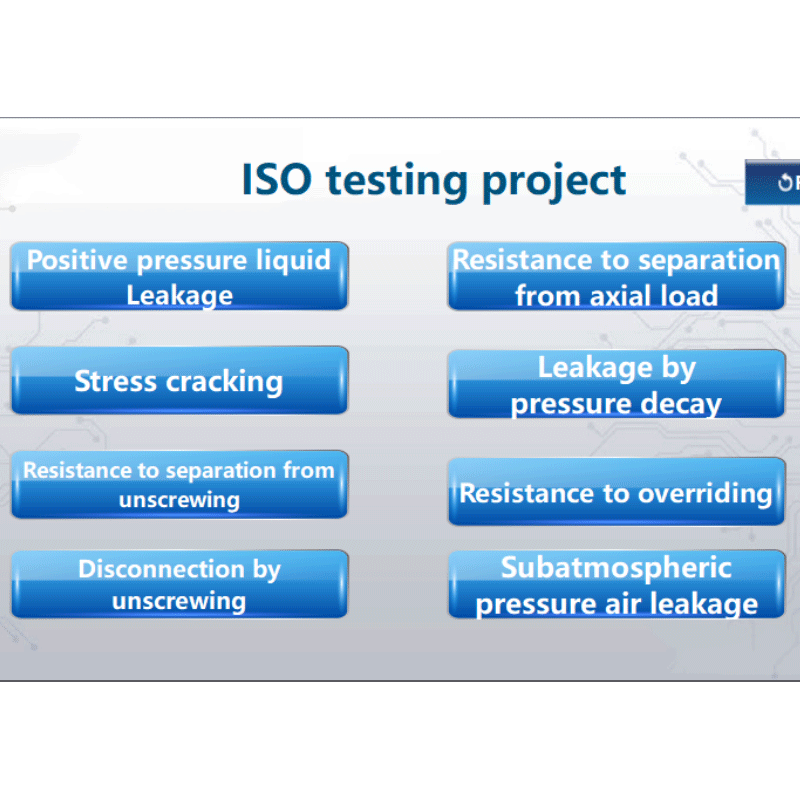

A: This ultimate platform completely replaces the need for separate machines by packing 7 critical evaluation modes into a single framework. It seamlessly runs pressure decay leakage tests, positive pressure liquid leakage tests, sub-atmospheric air leakage rate tests (when equipped with our negative pressure rate tester module), stress cracking analysis, resistance to axial disengagement (separation force), resistance to rotational disengagement (anti-loosening force), and heavy overload resistance validation.
Q2: What is the exact step-by-step mechanical principle for evaluating a 6% (Luer) conical joint?

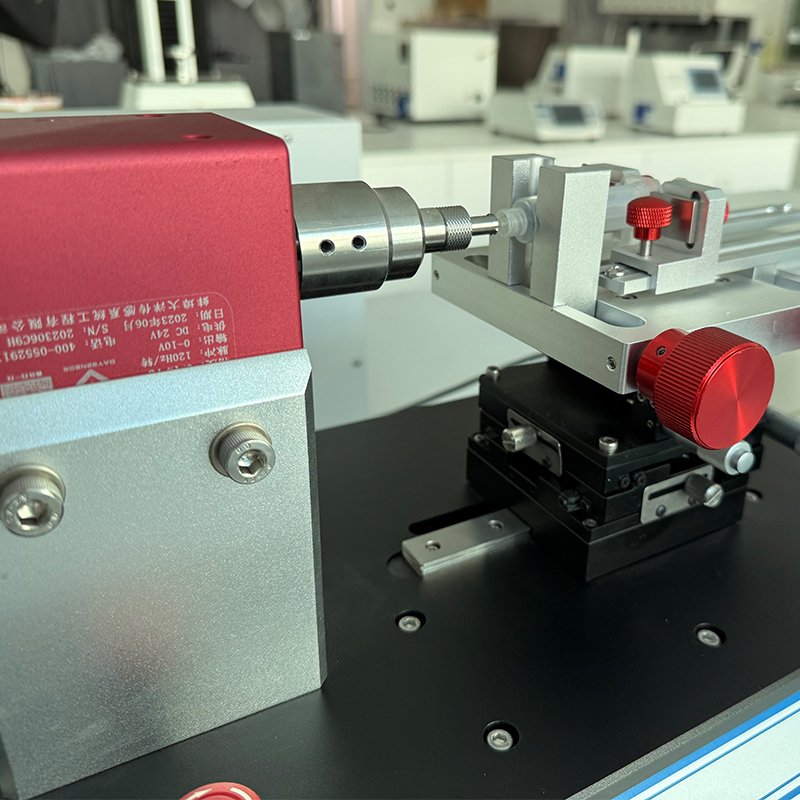

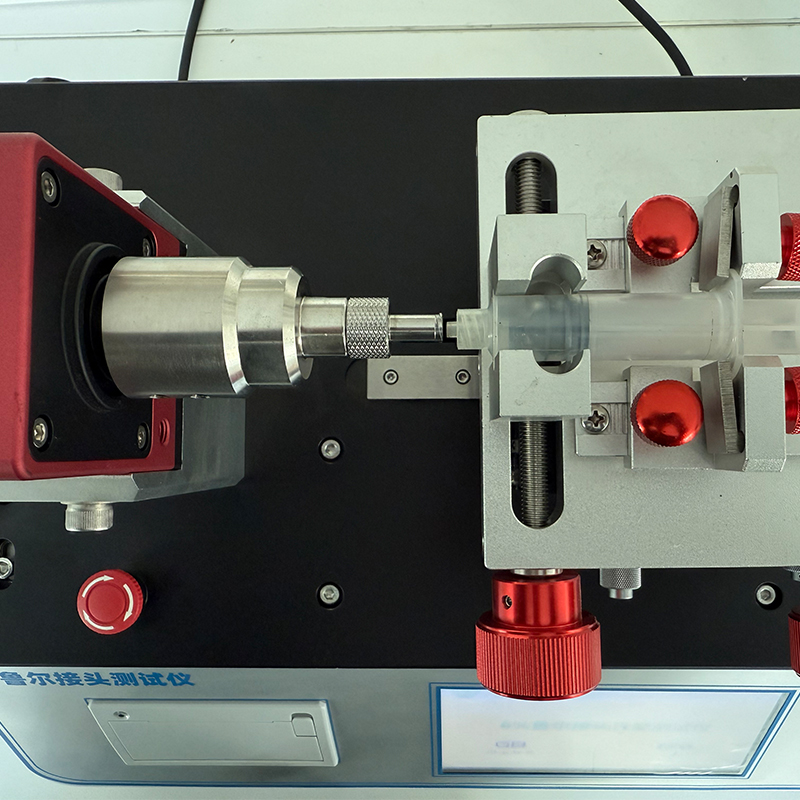

A: The workflow relies on simultaneous multi-axis force loading to match international regulations. According to the precise criteria of ISO80369-3:2016, ISO80369-6:2016, and ISO80369-7:2021, the machine secures the joint sample and automatically applies a pre-calculated combination of rotational torque and vertical axial force. The system then drives the integrated fluid pump to introduce water pressure or pull a vacuum, automatically analyzing if any structural micro-cracks occur, measuring the exact force needed for disengagement, and tracking leakage values down to the decimal point.
Q3: How does the Peyotal system guarantee data integrity and audit readiness for global laboratory inspections?

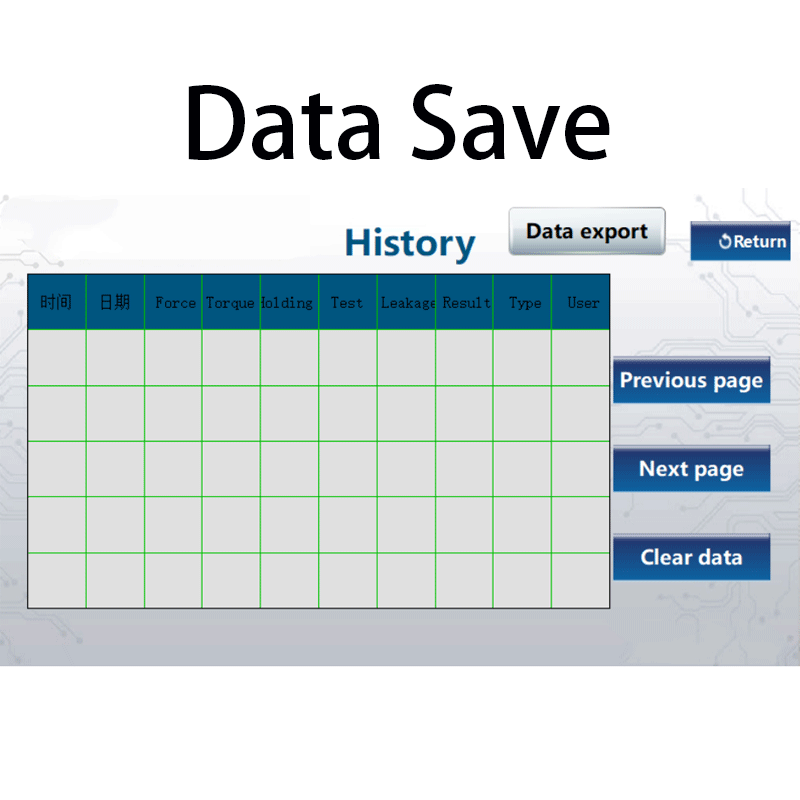

A: For medical syringe manufacturers and national science departments, data security is paramount during quality audits. Our 7-inch touchscreen software is engineered around strict GMP multi-level user permission frameworks. Operators can view and log testing data in real-time, but the historical data repository is non-modifiable, creating an permanent audit trail that records every calibration change and test cycle. Results can be printed instantly via the on-board printer to create identical physical verification sheets for laboratory validation logs.
Q4: Does the instrument package arrive as a fully complete solution, and what are the logistics specifications?

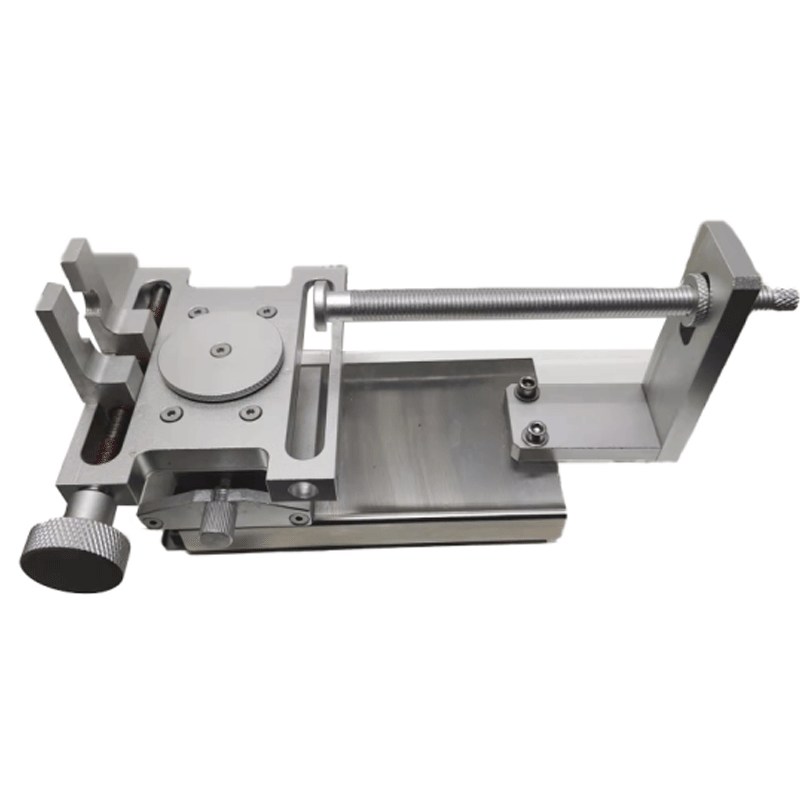

A: Yes, Peyotal provides a complete Turnkey setup designed for smooth installation in facilities throughout Latin America, Africa, Central Asia, and Southeast Asia. The unit runs on standard AC 220V/50Hz power and weighs 40kg, giving it immense structural stability during heavy 200N tensile pulling tests. The delivery container arrives factory-sealed with the main testing instrument, a dedicated set of high-durability Luer connector fixtures, a full connector adapter kit covering sizes 0 to 13, our high-performance fluid pressure pump, power cables, and micro-printer paper rolls included.
