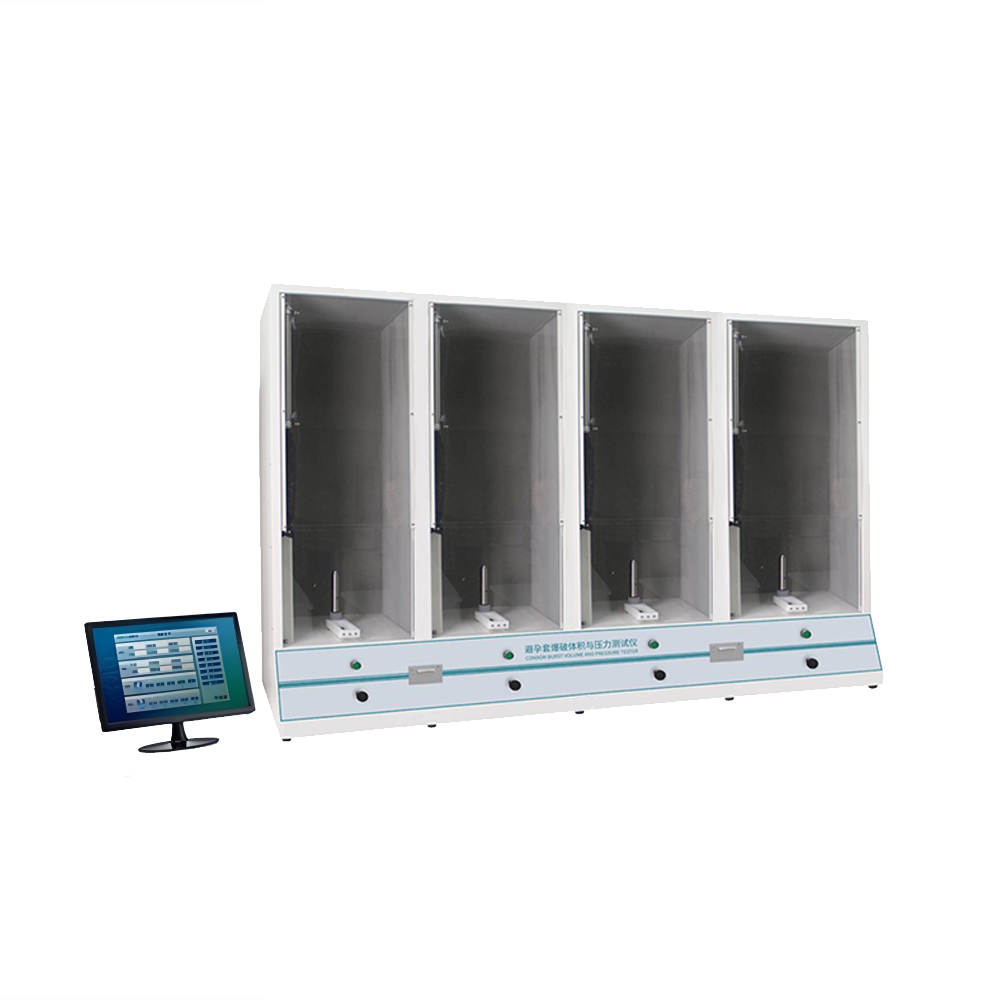

PYT-142 Condom Automatic Burst Tester

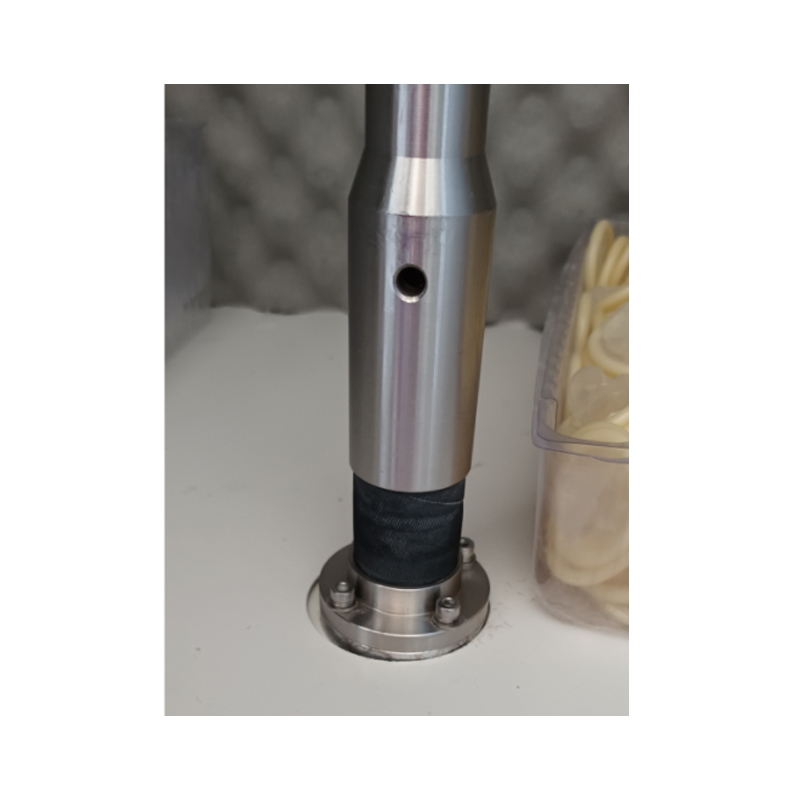

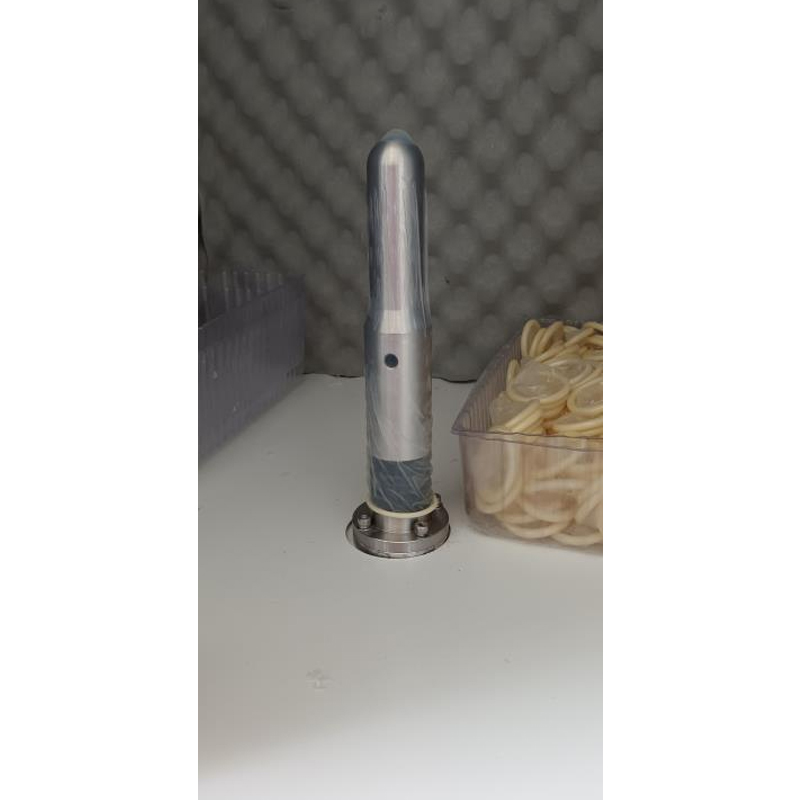

The Peyotal Condom Automatic Burst Tester features a four-station testing architecture with one-button automated operation to maximize laboratory efficiency and reduce operator workload. Through its intuitive control interface, the instrument automatically detects, displays, and records the inflation pressure, accumulated volume, and elapsed time up to the exact moment of condom rupture, while providing automated pass/fail analysis and defect identification for unqualified specimens. The system allows operators to independently add or edit testing standards, functions in standalone offline modes with automated data logging, and can be integrated into centralized lab environments where a single computer simultaneously monitors and controls at least two multi-station blasters. During standard procedures, the condom is mounted onto a 220 mm inflation rod (featuring a 25 mm top spherical diameter) and secured using a 40 mm inside diameter clamping ring. Regulated air inflation is applied at a standardized aeration rate of (0.4 to 0.5) dm³/s or (24 to 30) dm³/min until rupture occurs. Covering a burst pressure range of 0 to 5.0 kPa (accuracy: 0.01 kPa) and a volume capacity of 0 to 60 dm³ (accuracy: <= +/-1.5%), the instrument automatically generates testing reports and prints immediate physical results. Powered by AC 220V 50Hz with dimensions of 2100 mm * 500 mm * 1300 mm and a net weight of 80 kg, this apparatus connects to an external 0.6 to 1 MPa air source via a Ф6mm polyurethane tube to provide quality assurance for condom manufacturing plants and testing laboratories.
product details
The Condom Automatic Burst Tester is an automated multi-station testing apparatus engineered and manufactured by Peyotal to determine the bursting volume and bursting pressure of natural rubber latex and synthetic condoms during continuous air inflation. Designed with a four-station testing configuration, this instrument enables high-throughput laboratory evaluation of barrier contraceptive elasticity, tensile strength, and burst limits under controlled pneumatic flow conditions.
Standards: ISO 4074, GB7544-2019, ISO23409, ASTM D6324.
| Model | PYT-142 |
| Brand | Peyotal |
| Power Supply | AC 220V / 50Hz (customizable) |
| Standard Compliance | ISO 4074, GB7544-2019, ISO23409, ASTM D6324 |
| Dimension | 2100(mm)500(mm)1300(mm) |
| Warranty | 12 months |
Q1: How does the PYT-142 handle high-volume testing without compromising pressure accuracy?
A: The PYT-142 is equipped with four independent pneumatic control channels and premium regulatory valves. Each station independently maintains a stabilized aeration rate of (24–30) dm3/min, ensuring that simultaneous inflation across all four stations does not cause pressure drops or affect the 0.01kPa detection accuracy.
Q2: Can we run different testing standards on different stations at the same time?
A: Yes. The advanced operator interface allows users to independently add, edit, and select test standards. While the stations share a central centralized control link to a computer, the physical testing execution on each blowing rod can be managed to suit your specific laboratory sampling workflows.
Q3: What is the warranty?
A: We provide 12 months warranty and lifetime technical support.
Q4: How does the system automatically manage and flag non-conforming products during batch testing?

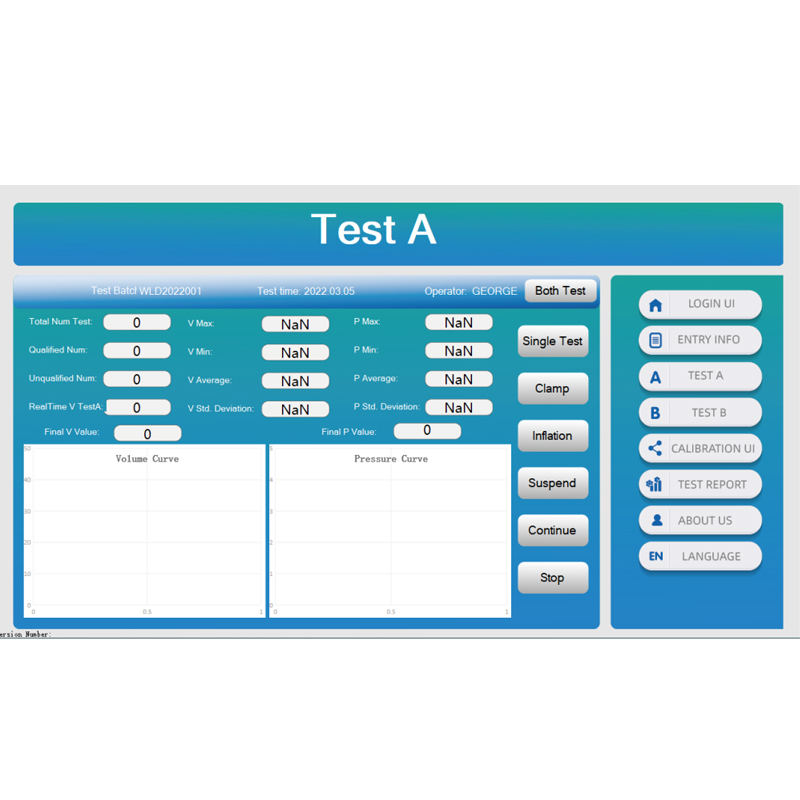

A: During the continuous inflation-to-explosion cycle, the smart screen automatically logs burst parameters. If a sample fails to meet the preset volume or pressure limits of ISO 4074, the software instantly analyzes and flags the unqualified data, isolating it in the localized report or automated printout for immediate QA evaluation.
