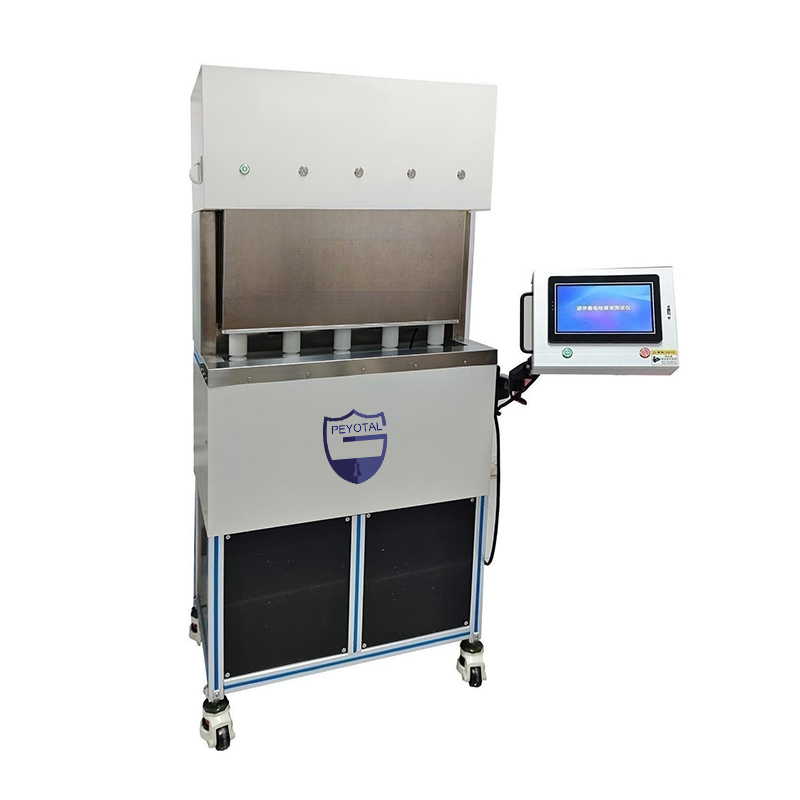

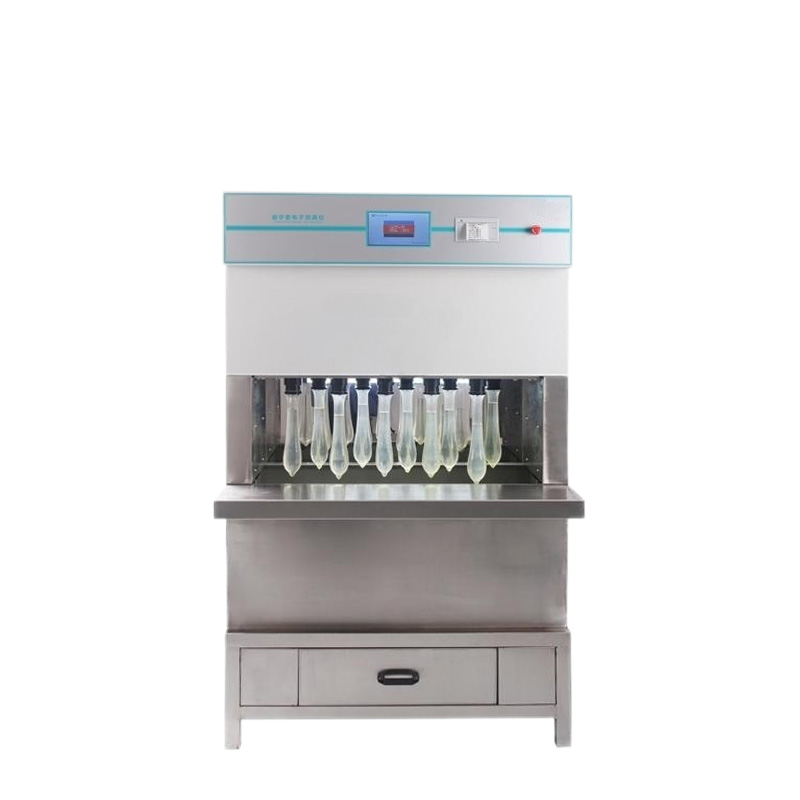

Condom Electric Water Leak Tester is a fast, effective, and professional testing instrument manufactured by Petotal. With years of R&D and manufacturing experience, it is designed for accurate, repeatable pinhole determination in laboratory and industrial environments, fully compliant with international standards.
Standards: ISO 4074:2015, ISO 4074:2002, GB7544-2009, AFNOR, DIN.
| Model | PYT-143 |
| Brand | Peyotal |
| Power Supply | AC 220V / 50Hz (customizable) |
| Standard Compliance | ISO 4074 / GB7544 / AFNOR / DIN |
| Dimension | 1000(mm)450(mm)1600(mm) |
| )Warranty | 12 months |
Q1: What is the exact testing principle behind this condom electric water leak tester?
A: The instrument utilizes an advanced electronic shielding method to detect microscopic pinholes. A condom without any pinholes acts as a perfect electrical insulator, preventing current from completing a circuit. Conversely, if a pinhole is present, water penetrates and creates a conductive path, allowing the current to form a circuit which is instantly caught and recorded by our high-precision voltmeter.
Q2: Can we adjust the automated water injection volume to meet different audit requirements?
A: Yes, absolutely. While the standard automatic injection is set at 300ml, our system architecture allows us to provide custom models ranging from 200ml to 450ml depending on your exact compliance needs. For instance, it can be set to 200ml according to standard ISO 4074:2002 conductivity leakage parameters, with an automatic extra 100ml addition if the sample is found conductive.

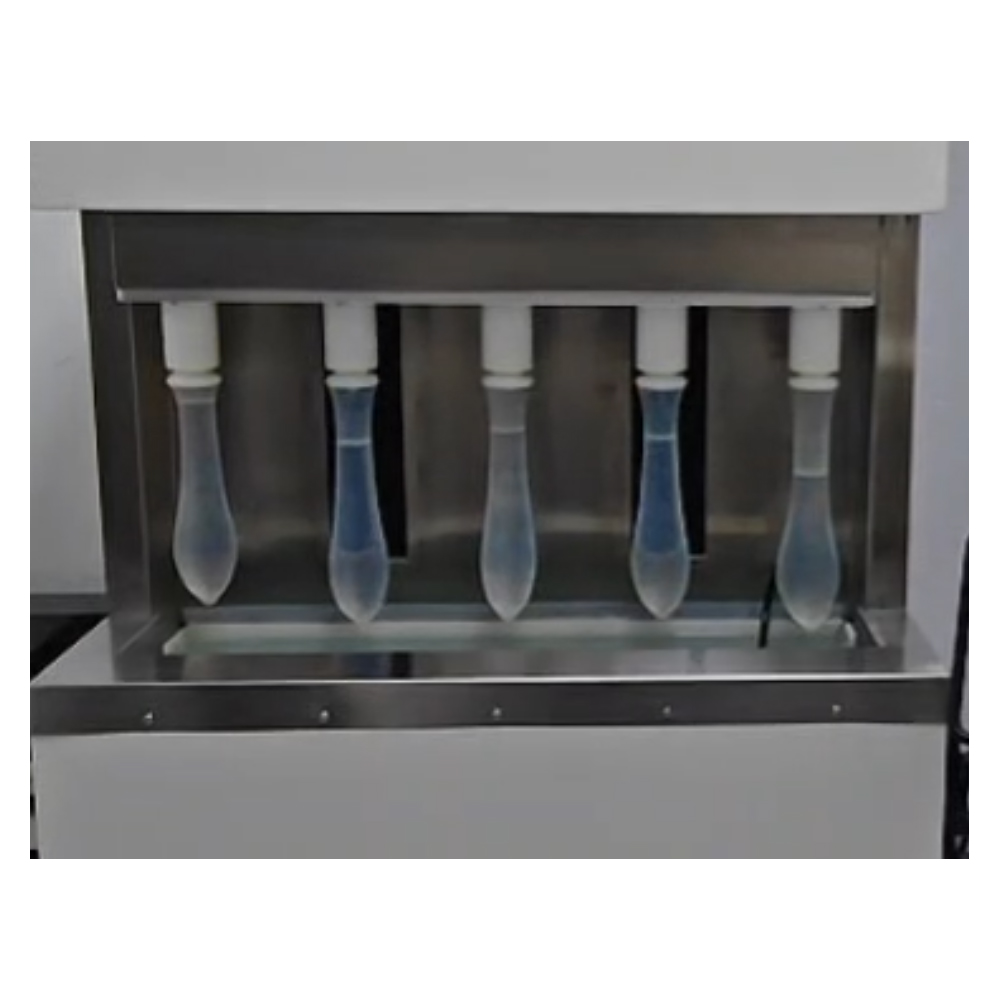

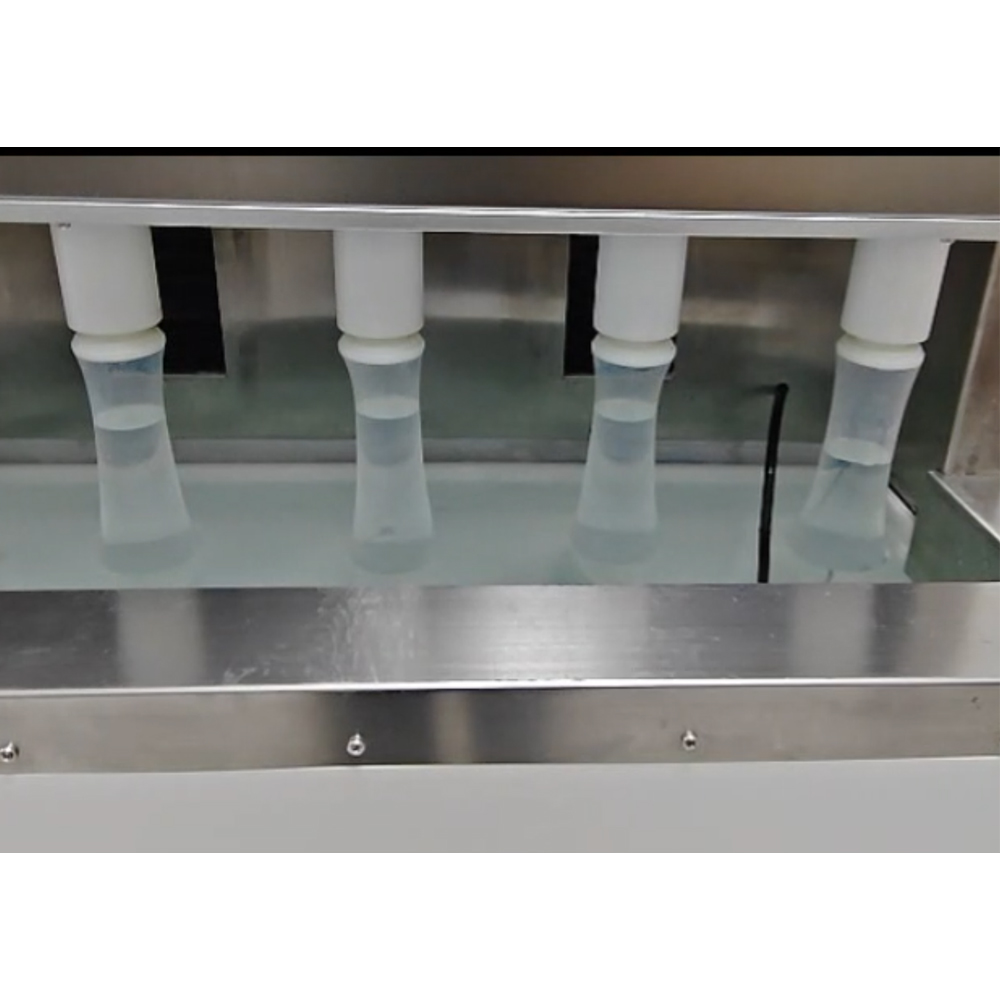

Q3: How does the 10-station lifting configuration optimize labor and data management?
A: The tester features 10 independent test heads equipped with an automatic lifting mechanism. This allows high-throughput parallel processing. Crucially, all leakage and voltage test data from every individual station is automatically transmitted to the computer, eliminating human recording errors and offering a digital report ready for QA validation.
Q4: Can this machine be utilized for testing latex products other than condoms?
A: Yes, this equipment offers excellent extended application versatility. Thanks to its wide measurement range and adaptable station fixtures, it is fully suitable for the high-precision pinhole electrical detection of various medical or industrial rubber gloves and related latex barrier products.
