PYT-145A Auto Condom Length Measuring Instrument

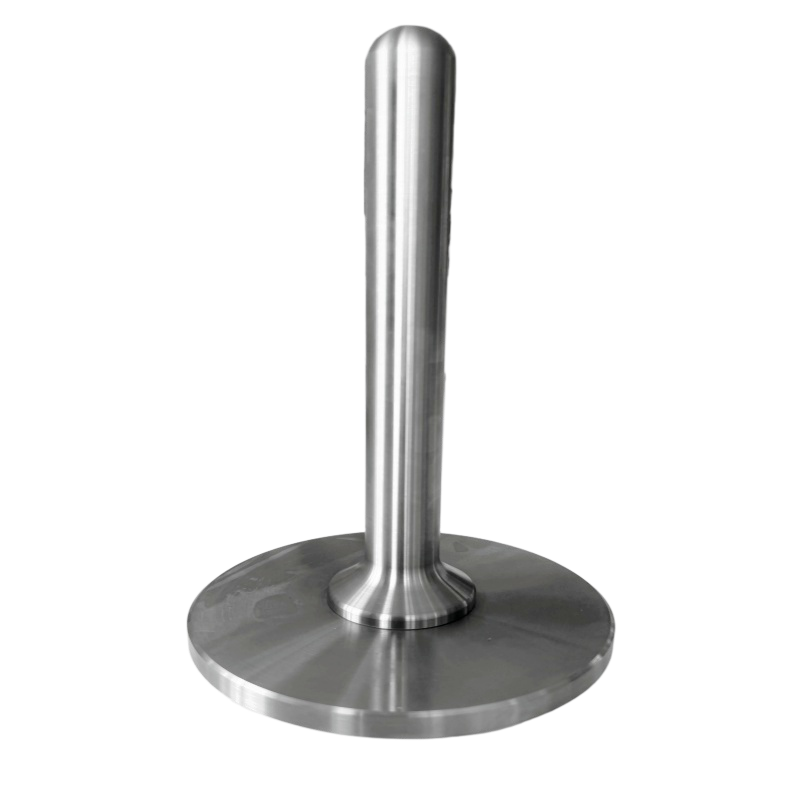

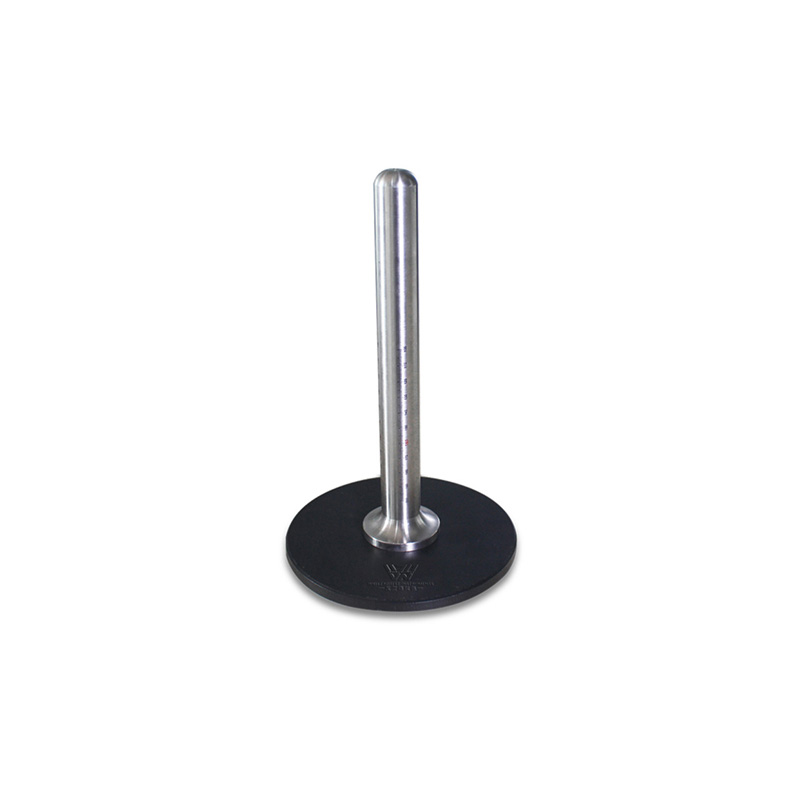

The Peyotal Auto Condom Length Measuring Instrument features a specialized cylindrical measuring mandrel with a full-angle, multidirectional scale display, enabling operators to inspect length indications accurately from multiple viewing angles. The graduated markings are precision-engraved and color-filled to ensure wear resistance and long-term readability in production and laboratory environments. During standard measurement procedures, the condom sample is unfolded and gently stretched twice by no more than 20 mm. It is then positioned over the vertical round bar measuring ruler and allowed to hang freely under its own self-weight. The operator records the minimum length reading at the open rim edge on the scale with millimeter accuracy. Featuring a measuring span of 0 to 200 mm with a 1.0 mm graduation value, the instrument incorporates a stable base of Φ150 mm, an overall height of 230 mm (unit body: 110 mm * 100 mm * 240 mm), and a net weight of 2 kg. This compact benchtop gauge provides quality control for latex manufacturing lines, packaging facilities, and compliance testing laboratories.
product details
The Auto Condom Length Measuring Instrument is a specialized dimensional inspection apparatus engineered and manufactured by Peyotal to measure the free-hanging length of natural latex rubber condoms. Developed in accordance with GB 7544-2009 standards, this device delivers high-contrast readability and repeatable dimensional verification for condoms, medical examination rubber gloves, and elastomeric balloon products.
Standards: Fully compliant with international and national testing frameworks including GB 7544-2009.
| Model | PYT-145A |
| Brand | Peyotal |
| Power Supply | None (100% Manual Mechanical Operation) |
| Standard Compliance | ISO 4074 / ASTM D6324 / GB 7544 |
| Dimension | 110(mm)100(mm)240(mm) |
| Warranty | 12 months |
Q1: What is the exact manual procedure for operating this condom length gauge?
A: Following the standard laboratory testing principle, the operator unfolds the condom and stretches it gently twice, making sure the stretching extension length does not exceed 20mm. The sample is then smoothly placed onto the 230mm height round bar measuring ruler axis. Allow the condom to drop freely under its own natural weight. The minimum length of the open end is then read directly from the multi-directional scale, accurate to the millimeter, making it fast and efficient for batch sampling.
Q2: How does the Peyotal gauge prevent scale fading or wearing out during high-volume factory use?

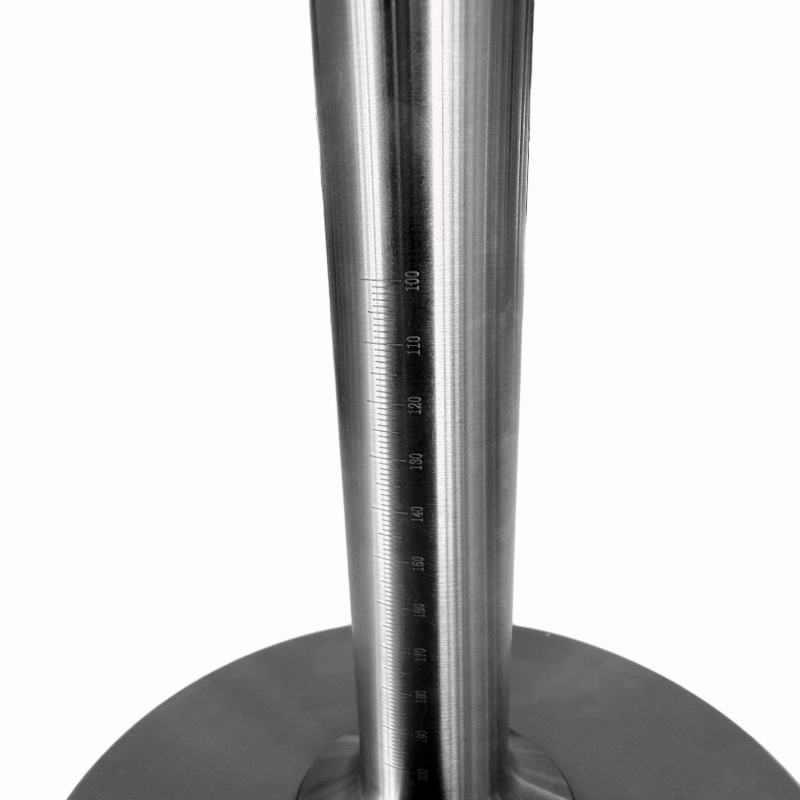

A: In busy manufacturing plants across Southeast Asia and Africa, standard printed rulers quickly wear out due to constant contact and humidity. Peyotal addresses this by utilizing a premium engraving and coloring process. The 1.0mm graduation markings are mechanically carved deep into the material and filled with high-contrast, wear-resistant coloration. This ensures an exceptionally long wear-resistant service life, even under continuous multi-shift factory operation.
Q3: Why is the full-angle multidirectional scale display important for laboratory technicians?
A: In fast-paced factory quality control lines or educational institutes, operators often need to view measurements from different angles or while managing multiple test benches. Our specialized full-angle display allows the scale value to be clearly read from multiple directions. This convenient feature reduces visual fatigue, accelerates sample processing times, and lowers the risk of human transposition errors during data logging.
Q4: Can this mechanical tool accommodate testing for products other than standard condoms?
A: Yes, this manual gauge offers excellent application versatility for the latex industry. Its standard round bar geometry and stable 150mm pedestal base make it perfectly suitable for measuring the physical length and dimensional compliance of various medical rubber gloves, industrial protective gloves, and household balloon products. It provides a highly economical alternative for laboratories that do not require full automated software tracking.
