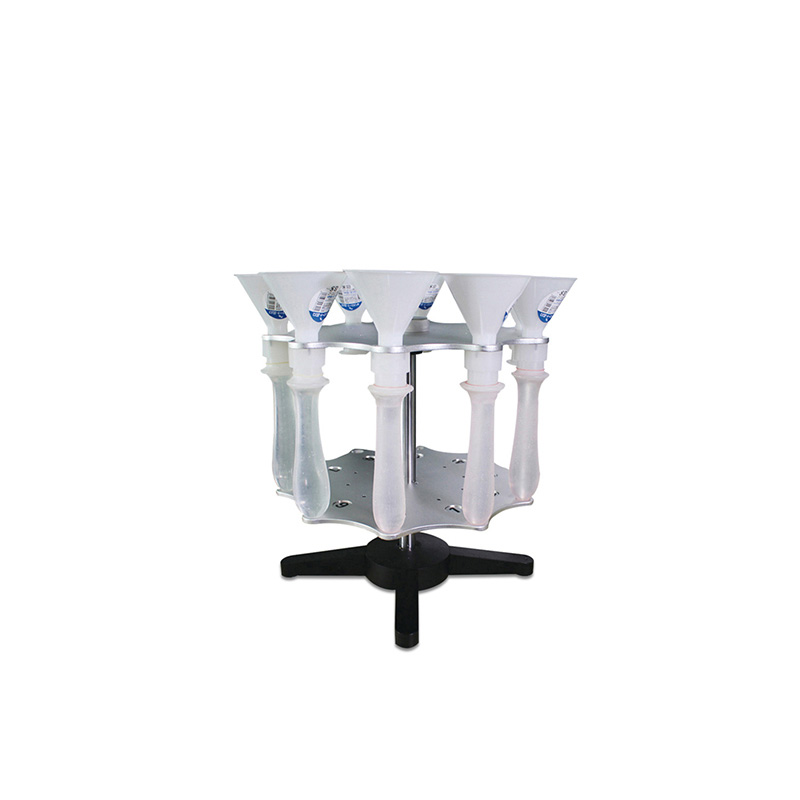

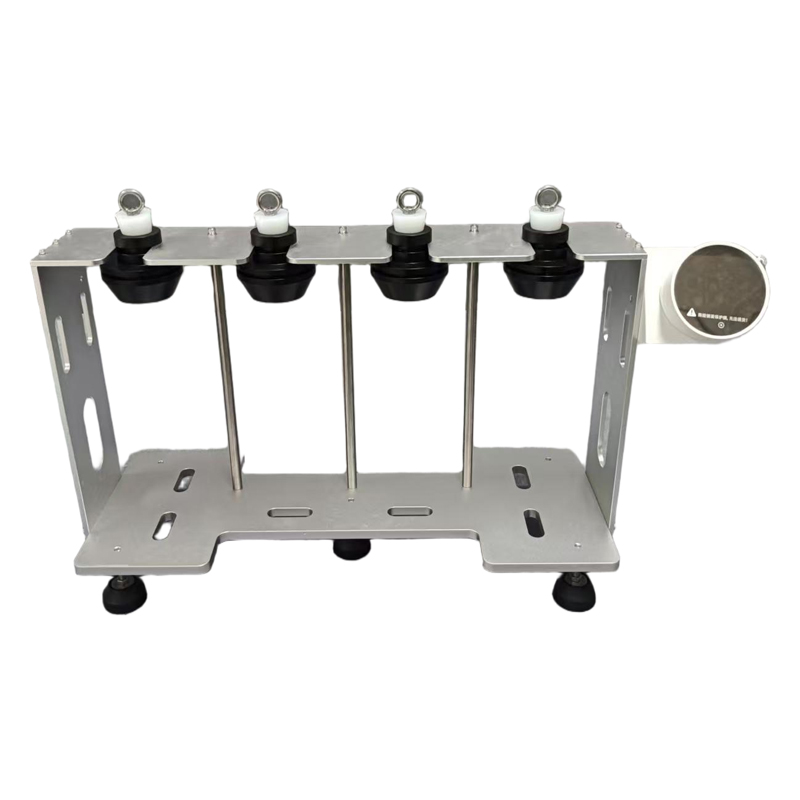

PYT-146 Condom Pinhole Water Leakage Tester

The Condom Pinhole Water Leakage Tester is a multi-station laboratory inspection apparatus engineered and manufactured by Peyotal to assess pinhole defects and water tightness in natural latex rubber condoms and medical protective sheaths. Designed for high-throughput barrier integrity verification, the system allows quality control inspectors to evaluate multiple sample sets simultaneously via a rotating testing carousel and standard absorbent paper rolling protocols。

Standards: Fully compliant with international and national calibration frameworks including GB7544, ISO23409, and ASTMD6324.

Q1: What is the exact step-by-step product description and methodology for conducting a test on this machine?

A: Following strict ISO 4074 guidelines, the operator unfolds the condom and stretches it gently twice (ensuring the stretching extension does not exceed 20mm). The sample is then placed on our precision 25mm diameter round bar measuring ruler axis. It drops freely under its own natural weight, and the integrated ultra-high precision sensor automatically records the minimum length of the opening end on the calibrated scale, accurate to the millimeter, completely removing human manual judgment errors.

Q2: How does the single-axis rotating table design benefit busy laboratory operators?

A: In high-capacity testing labs across Southeast Asia and Latin America, checking 10 separate hanging samples can lead to visual blind spots and operator fatigue. Peyotal’s integrated single-axis rotating table solves this by allowing the technician to stand in one fixed position and smoothly rotate the entire testing batch. This convenient multidirectional setup makes clamping, water filling, and tracking individual station results fast, efficient, and reliable.

Q3: Why did Peyotal develop a customized clamping device for this manual water leak tester?

A: Standard commercial clamps often rely on sharp springs or rough edges that accidentally puncture thin latex rubber sleeves during testing, ruining the sample and causing false QA data. Peyotal’s engineering factory developed a customized smooth-locking clamping device. This specialized mechanism provides a tight seal to prevent any water bypass at the opening rim while avoiding structural damage to the condom wall, ensuring absolute accuracy of your laboratory test audits.

Q4: What facility utilities are required to operate the Peyotal PYT-Water Leak Tester?

A: This instrument is an entirely mechanical quality control station, meaning it requires zero electrical power hookups or high-pressure pneumatic gas lines to execute the standard GB7544 testing process. This makes it incredibly cost-effective and portable for laboratory setups in remote educational institutes, medical factories, or health ministries where local utility infrastructure might fluctuate. The package arrives ready-to-use with the main unit and a calibrated measuring cup included.
